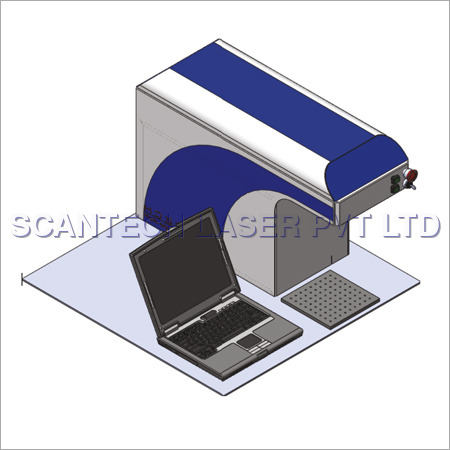

Promark Fp Portable Fiber Marking Machine

Promark Fp Portable Fiber Marking Machine
Promark Fp Portable Fiber Marking Machine
Product Code : 32
Product Description

ProMark FP20 Portable Fiber Marking System:

Features :Ÿ
Ÿ

  1. 20W Ytterbium Fiber Laser
  2. High Performance GalvoScanner.
  3. Excellent Beam Quality.
  4. Software compatible with COREL DRAW, AUTO CAD, PHOTOSHOP etc. a variety of software output files.
  5. Supports PLT, AI,DXF,BMPand other documents, Support automated coding, serial number, batch number, date, bar code and two dimensional code marking.
  6. 1kvAUPSis sufficient
  7. Low Power Consumption
  8. Low Maintenance
  9. Compact in size

Laser Specification:

Laser Type            : Yb Doped Fiber Laser (Diode Pumped)
Make                     : SPI Laser
Wavelength           :  1060-1070 nm
Output Power        :  20W
Laser Life(MTBF) : 45,000 Hrs.
Pilot Beam            : Red Diode
Cooling                 : Not Required In Built Air Cooling
M2                        :  ≤1.4
Peak Pulse Power : 10KW@1KHz

Galvo Specification:

Effective Marking Area         : 110mm x110mm or180mm x 180mm.
Repeatability                         : ± 3-μ
Accuracy                               : ± 3-μ
Marking Depth                      : 50 micron - 500 micron (Multi Pass)
Marking Speed                      : 6-8 Character of 3mm height on SS in less then <<1sec
Minimum Character Height  : 0.3mm
Pointing Stability                   : Excellent
Beam Roundness                   : Excellent

Hardware & Software:

Display                  : 10" Netbook
Operating System : Windows XP,Windows 7 or Latest Version.
Marking Software : ScanMark

Power Requirement:

Electricity                 : Single Phase 230 V AC, 50Hz.
Power Consumption : 250W

Physical Appearance:

Colour : Siemens Grey & VIP Blue
Safety  : Laser Safety Cover Between Operator and Galvo Scanner.
Weight : 40kg.

Loading:

Job Loading : Manual

Environmental Condition:

Ambient Temperature : 25°C

Note : Requires Dust free Environment

Applications:

M.S, S.S, Al, Brass, Cu, Anodized Plate & Painted Aluminum Tags, Many Plastics, Label Hardened
Tool, Bearing, Electrical Switches etc.
