Patriot Fr Fiber Rotary Cutting Machine

Product Description

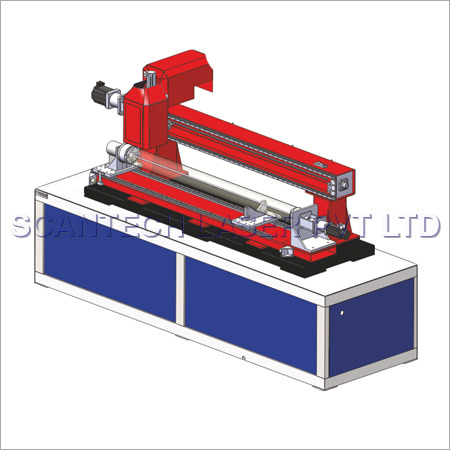

Patriot FR400 Fiber Rotary Cutting system:

• Ÿ The Laser based rotary pipe cutter Patriot FR400 is a very cost effective and attractively priced system
• Ÿ Exhaust system manufacturers, piping manifold and flow distribution systems builders will be greatly benefitted.
• Ÿ Also as it can cut intricate profiles on a circular pipe of SS/MS up to 3 mm wall thickness, Interior designers, can now produce any shape and design.
• Ÿ The cutting is so accurate, that the product is almost ready to use or ready for Laser welding. This helps flow control and distribution system builders by saving all the traditional labor, time and wastage.

Laser Specification
                                     Laser source                     :    Yb doped Compact Fiber Laser
                                     Make                                :    SPI Laser
                                     Wavelength                       :    1070 ± 10 nm
                                     Maximum modulation rate:    100 kHz
                                     Minimum pulse width       :    <10 S
                                     Full angle divergence        :    3.5 mrad(2)
                                     M2 / Beam parameter      :    <1.1 (nominal) <0.37 mm. mrad
                                     Cooling                           :    Water Cooled

CNC Specification
                                     Max Pipe length              :    2.0M
                                     Max Pipe Dia                  :    200 mm
                                     Accuracy                        :    Positioning and Cutting :≤ 0.070 mm
                                     Processing speed            :    1M to 4M /min (as per job design and Wall thickness)
                                     Assist Gas                      :    Oxygen, Nitrogen
                                     Assist Gas Pressure         :    0.3 Bar to 8 Bar (Regulated through laser Control)

Power Consumption
                                                                           :    1 phase, 230 VAC, 4.5KW max

Software
                                                                           :    ScanCut R (accepting dxf of Acad)

Maximum wall thickness of pipe that can be cut
                                                                           :    3mm / 400W power

Minimum wall thickness of pipe that can be cut
                                                                           :    0.3mm / 75W power

Automation
                                                                           :    Beckhoff

Auto Focus
                                                                           :    Precitech Head.

Material
                                     S.S, M.S. Aluminium (1/4th of MS thickness for the rated laser power)
