30W Fiber Laser Marking Machine - ProMark F30 - STN Air Cooled

30W Fiber Laser Marking Machine - ProMark F30 - STN Air Cooled Specification

Marking Speed
7500 mm/m

Marking Area
150 x 150 Optional

Condition
New

Usage
For Industrial Use

Laser Type
Fiber Laser

Size
1500 x 1500 x 1500 (Approx)

Height
150 Centimeter (cm)

Cooling Mode
Air Cooling

Control Software
Ez CAD

Product Type
Laser Marking Machine

Accuracy
0.1 mm

Weight
80 Kilograms (kg)

Power
30 Watt (w)

Color
Blue

Width
150 Centimeter (cm)

Dimensions
150 x 150 mm (Optional Size on Request) Millimeter (mm)

Length
150 Centimeter (cm)

Warranty
1 Year

30W Fiber Laser Marking Machine - ProMark F30 - STN Air Cooled Trade Information

Minimum Order Quantity
1 Number

FOB Port
JNPT

Payment Terms
Cheque, Telegraphic Transfer (T/T)

Supply Ability
100 Per Month

Delivery Time
1 Week

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
Wooden

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001:2015, CE

About 30W Fiber Laser Marking Machine - ProMark F30 - STN Air Cooled

Product Description

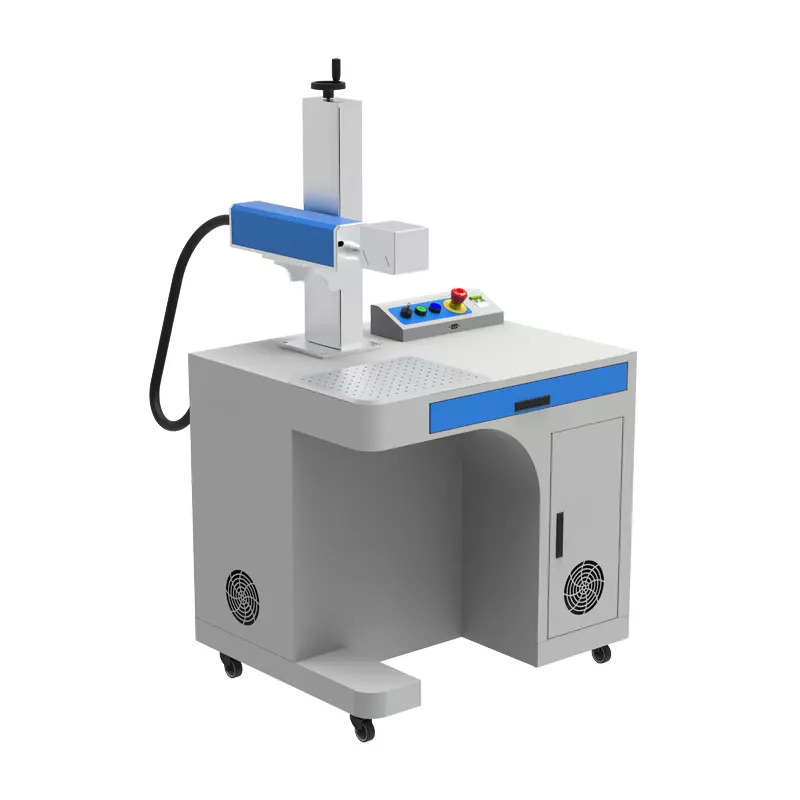

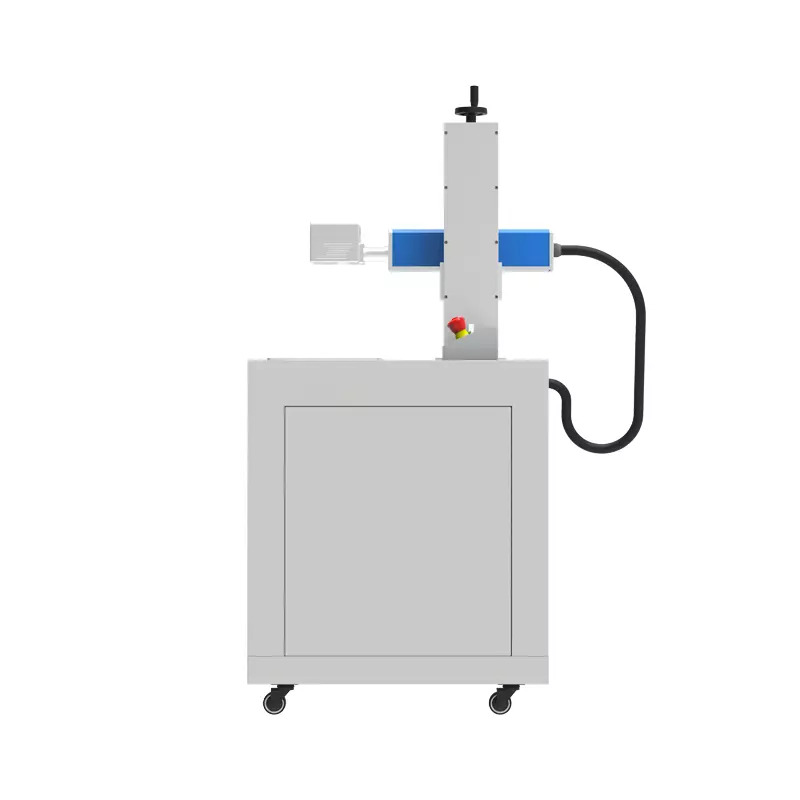

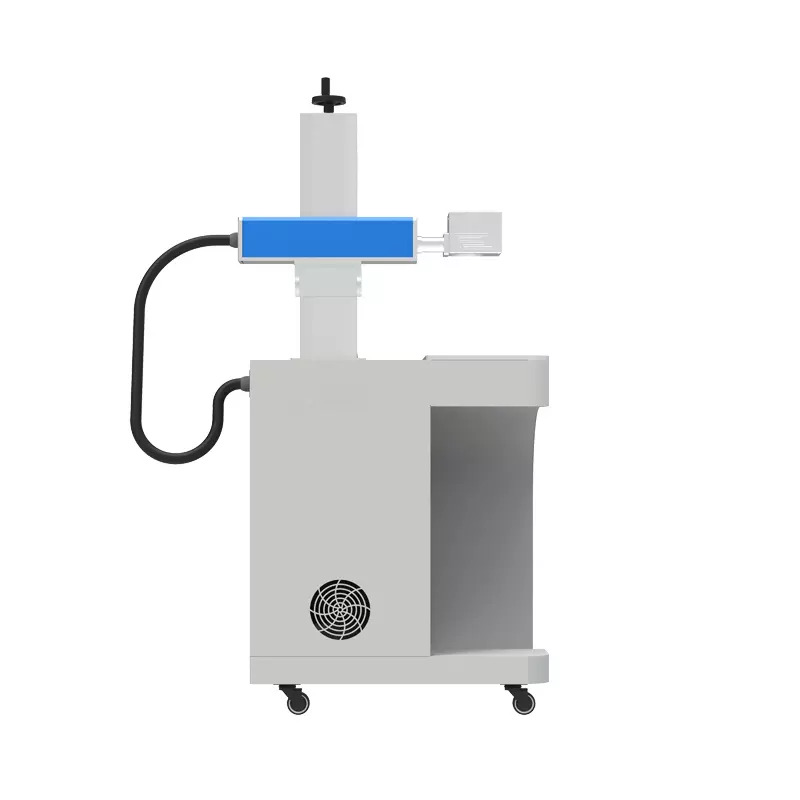

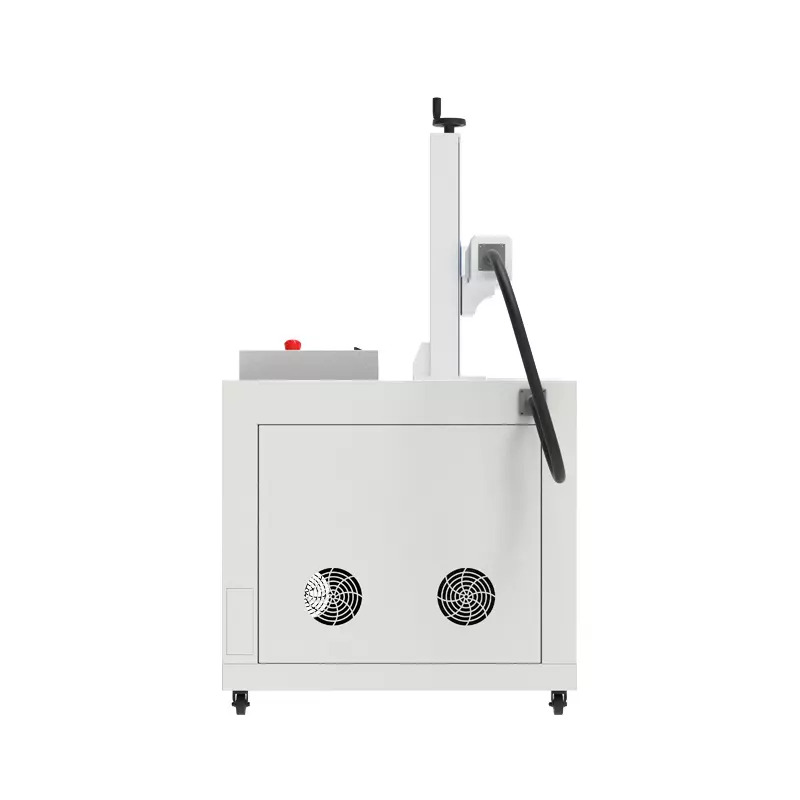

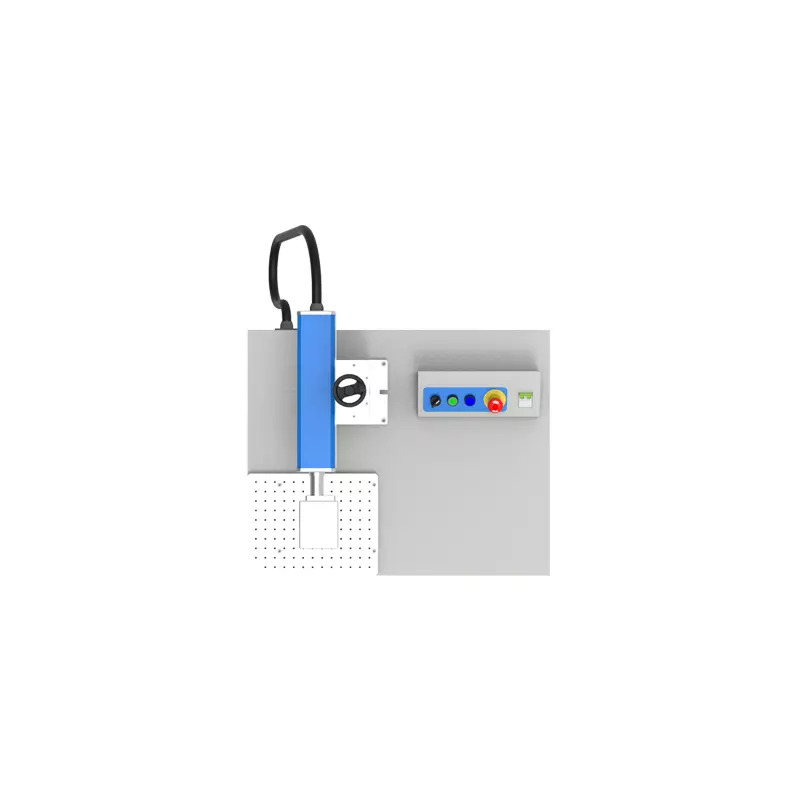

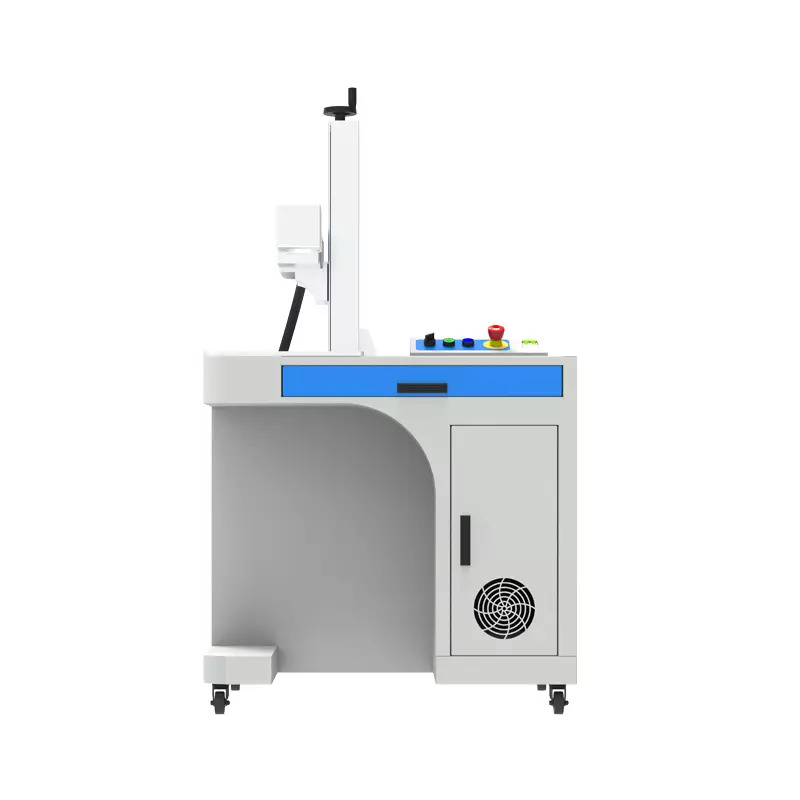

ProMark F30 - STN is a compact bench-top fiber laser marking machine designed for high-speed, precise, and permanent marking on metal and selected engineering plastic components. The system is equipped with a 30W pulsed fiber laser source, air-cooled configuration, 150 x 150 mm marking area, and 200 mm Z-axis travel for flexible job height adjustment.

It is supplied with ScanMark laser marking software and features an integrated machine structure with fixture and foot switch for ease of operation. The machine is suitable for marking applications such as text, serial numbers, barcodes, QR codes, logos, and traceability requirements.

Compared to higher power variants, the F30 is optimized for surface marking, annealing, and light engraving, making it ideal for precision applications where deep engraving is not required. The compact bench-top design makes it suitable for workshops, laboratories, and production environments, with power consumption below 500W and a 1-year warranty.

Technical Specification Table

Parameter	Specification
Product Name	ProMark F30 - STN
Machine Type	Bench Model Fiber Laser Marking Machine
Laser Type	Pulsed Fiber Laser
Laser Power	30W
Cooling Method	Air Cooled
Marking Area	150 x 150 mm
Z-Axis Travel	200 mm
Power Consumption	< 500 W
Software	ScanMark
Operation	Bench Standalone
Machine Structure	Integrated bench structure with fixture
Actuation	Foot Switch Operated
Application Capability	Marking, Annealing, Light Engraving
Warranty	1 Year
