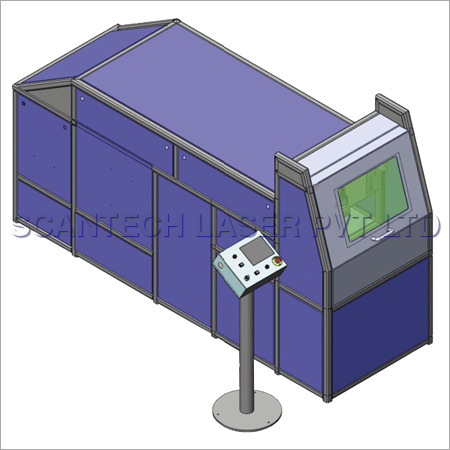

Lascribe G Grooving Machine

Product Description

Lascribe G200 Connecting Rod Grooving System

ŸGrooving on connecting rod is done by laser technology, to produce relatively Narrow, V-shaped characterized by sharp corners which promotes crack initiation at relatively low tension force level imposed on single part. When a sufficient tension force applied to a part, the stress riser groove initiates the propagation of crack to produce fractured components. The Fracturing operation is Made Easier, if the edges and groove intersection of the groove surface are sharp (not round), and the groove is relatively narrow and deep.

Laser Specification
                    Laser                   :  Solid State Flash Pump YAG
                    Wave Length       :  1053-1064 nm.
                    Mode                   :  Pulsed
                    Pulse rate            :  0.01 to 50 Hz Adjustable through-out range.
                    Pulse Width         :  0.25 ms to 20 ms (Adjustable).
                    Pulse Energy       :  100 mJ to 25J

Beam Delivery
                   Single Beam at 35⁰ Angle –Focusing head integrated

Machine Movement
                    Z Axis Movement         :  PLC Control 0 - 45mm
                    Home or Change Over rod :  Auto React100mm

Power Requirement
                    3 phase, 420V ± 10 %,0 Hz
